Mezzanine Ladders

Designed, Engineered & Manufactured in Australia

View Products Contact Us

Features & Benefits

Four standard models from 2.1 m to 3.9 m platform height
200 KG rated load capacity
Powder-coated yellow safety handrails at 957 mm height for visibility and grip
150 mm deep slip-resistant treads for confident step-by-step ascent
Hinged boom arm provides a safety barrier at mezzanine level when closed
Flush mount brackets secure the top of the ladder directly to the mezzanine floor edge
Bolt-down floor feet anchor the base for a stable, permanent installation
630 mm system width for a comfortable, compact mezzanine access footprint
Supplied flat-packed to reduce freight costs; backed by a Lifetime Structural Warranty

Download Product Brochure

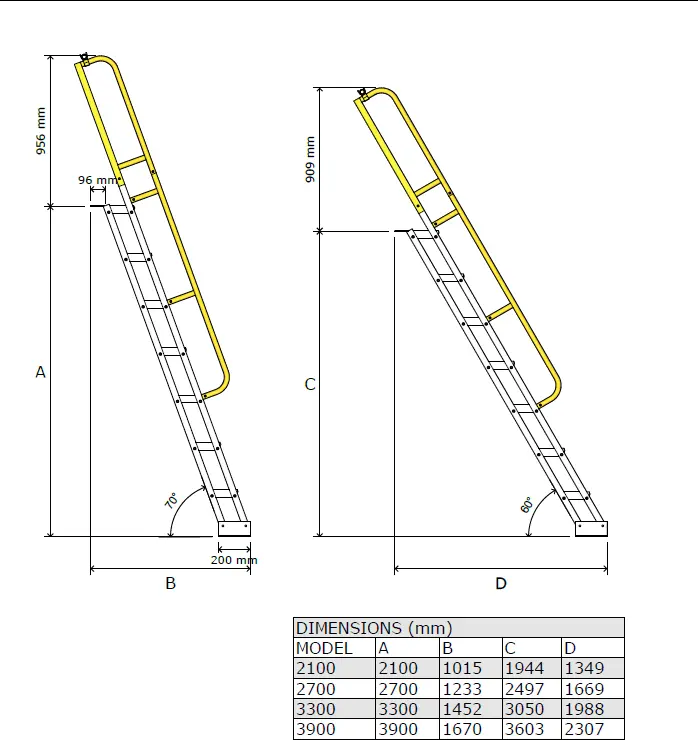

Specifications

Product	Platform Height	Handrail Height	Width	Load Rating	Weight
2.1M Mezzanine Ladder	2100 mm	957 mm	630 mm	200 KG	27.5 KG
2.7M Mezzanine Ladder	2700 mm	957 mm	630 mm	200 KG	30.8 KG
3.3M Mezzanine Ladder	3300 mm	957 mm	630 mm	200 KG	34.1 KG
3.9M Mezzanine Ladder	3900 mm	957 mm	630 mm	200 KG	37.4 KG

← Swipe to view full specifications →

Supplied flat-packed. Specs and dimensions are approximate and subject to change without notice.

Custom Needs?

Standard Inclusions

Boom Arm

Flush Mount Brackets

Powder Coated Handrails

150mm Anti-Slip Treads

Bolt-Down Floor Feet

630mm System Width

Star Aluminium Mezzanine Ladders

Star mezzanine ladders are purpose-designed access solutions for safe movement between floor levels, mezzanines and elevated platforms within industrial, commercial and warehouse facilities. Four standard models cover platform heights from 2.1 m to 3.9 m, each rated to 200 KG and supplied flat-packed to reduce freight costs and simplify delivery to site.
The system uses flush mount brackets to attach the top of the ladder directly to the mezzanine floor edge, providing a stable and permanent connection that integrates cleanly with the existing structure. Bolt-down base plates anchor the lower frame to the floor. The hinged boom arm at the top functions as a safety gate: it must be opened before stepping onto the mezzanine level, and closes once the operator is through, maintaining a fall protection barrier at all times.
Powder-coated yellow handrails at 957 mm height provide both grip and high-visibility identification in busy warehouse and production environments. The 150 mm deep slip-resistant treads and 630 mm system width provide confident footing for operators making multiple ascents and descents during a shift. Each unit is fitted with a compliance plate and backed by a Lifetime Structural Warranty.

Aftercare & Maintenance

All Star Aluminium products are manufactured to Australian Standards, with engineering certification and a fitted compliance plate on every unit.
Each product is backed by a Lifetime Structural Warranty and designed for sustained use in demanding industrial environments.
We recommend monthly inspections of the unit's surface and weld points for signs of damage or corrosion. Equipment showing damage should be marked out of service immediately.
If damage is identified during inspection, contact your Star Aluminium representative to arrange assessment and repair.
Australia-wide delivery available. Contact us to discuss project timelines, volume requirements or custom configurations.

Frequently Asked Questions

What heights are available for Star Aluminium mezzanine ladders?

Star Aluminium mezzanine ladders are available in four standard heights: 2.1 m, 2.7 m, 3.3 m and 3.9 m. The range covers the most common mezzanine floor heights found in industrial, commercial and warehouse environments. Custom heights are available on request for non-standard platform elevations or where structural constraints limit standard model installation.

What is the load rating for Star Aluminium mezzanine ladders?

Star Aluminium mezzanine ladders are rated to 200 kg SWL across all four standard models. The lightweight aluminium alloy construction maintains structural integrity in continuous-use environments without the corrosion risk associated with steel ladders in high-humidity, wash-down or outdoor settings. All units carry a Lifetime Structural Warranty.

How are Star Aluminium mezzanine ladders mounted?

Star Aluminium mezzanine ladders use flush-mount brackets designed for flat or tilt mounting directly to the mezzanine edge. Bolt-down floor feet secure the base of the ladder to the floor surface below. The hinged boom arm allows safe entry and exit at the top of the ladder without requiring a full gate. Units are supplied flat-packed and can be assembled on site without specialist tools.

Are Star Aluminium mezzanine ladders manufactured to Australian Standards?

Yes. All Star Aluminium mezzanine ladders are manufactured to Australian Standards for industrial ladder and access equipment. Each unit is fitted with a compliance plate to support site WHS obligations. Manufacturing is covered by the ISO 9001:2015 certified quality management system. All units carry a Lifetime Structural Warranty and are supplied flat-packed with powder-coated yellow safety handrails.

What safety features do mezzanine ladders include?

Standard safety features include powder-coated yellow handrails to meet WHS high-visibility requirements, 120 mm anti-slip treads, a hinged boom arm for safe top-of-ladder transition, flush-mount brackets for a secure and stable wall connection, and bolt-down floor feet. Each unit is supplied with a compliance plate and a Lifetime Structural Warranty.

What industries use Star Aluminium mezzanine ladders?

Star Aluminium mezzanine ladders are installed in industrial manufacturing facilities, warehouses, distribution centres, retail stockrooms, commercial buildings and government facilities across Australia. Applications include permanent access to mezzanine storage levels, elevated plant platforms, building services infrastructure and roof access points where a fixed ladder is more space-efficient than a stair system.
