Gangways

Designed, Engineered & Manufactured in Australia

View Products Contact Us

Features & Benefits

Manufactured from durable yet lightweight aluminium alloy for long-term performance
Five standard sizes from 2,000 mm to 6,000 mm total length
Load rating up to 2.5 kPa, suitable for industrial and marine environments
Full-height handrails provide continuous edge protection for confident boarding
Grid mesh deck options enhance traction in wet and marine conditions
Heavy-duty joining connectors allow multiple units to be linked for extended spans
Integrated lifting points for safe crane or overhead transport
Available as fixed or removable systems; supplied in modular sections for efficient transport
Backed by a Lifetime Structural Warranty

Download Product Brochure

Specifications

Model	Ramp Length	Total Width	Walkway Width	Handrail Height	Load Rating
Gangway 2	2000 mm	1300 mm	1200 mm	1000 mm	Up to 2.5 kPa
Gangway 3	3000 mm	1300 mm	1200 mm	1000 mm	Up to 2.5 kPa
Gangway 4	4000 mm	1300 mm	1200 mm	1000 mm	Up to 2.5 kPa
Gangway 5	5000 mm	1300 mm	1200 mm	1000 mm	Up to 2.5 kPa
Gangway 6	6000 mm	1300 mm	1200 mm	1000 mm	Up to 2.5 kPa

← Swipe to view full specifications →

Custom lengths and widths available. Specs and dimensions are approximate and subject to change without notice.

Custom Needs?

Standard Inclusions

Lifting Points

Grid Mesh Deck

Joining Connectors

Fitted Compliance Plate

Configurations

Checker Plate Ramp

Bolt Together Bridge System

Powder Coating

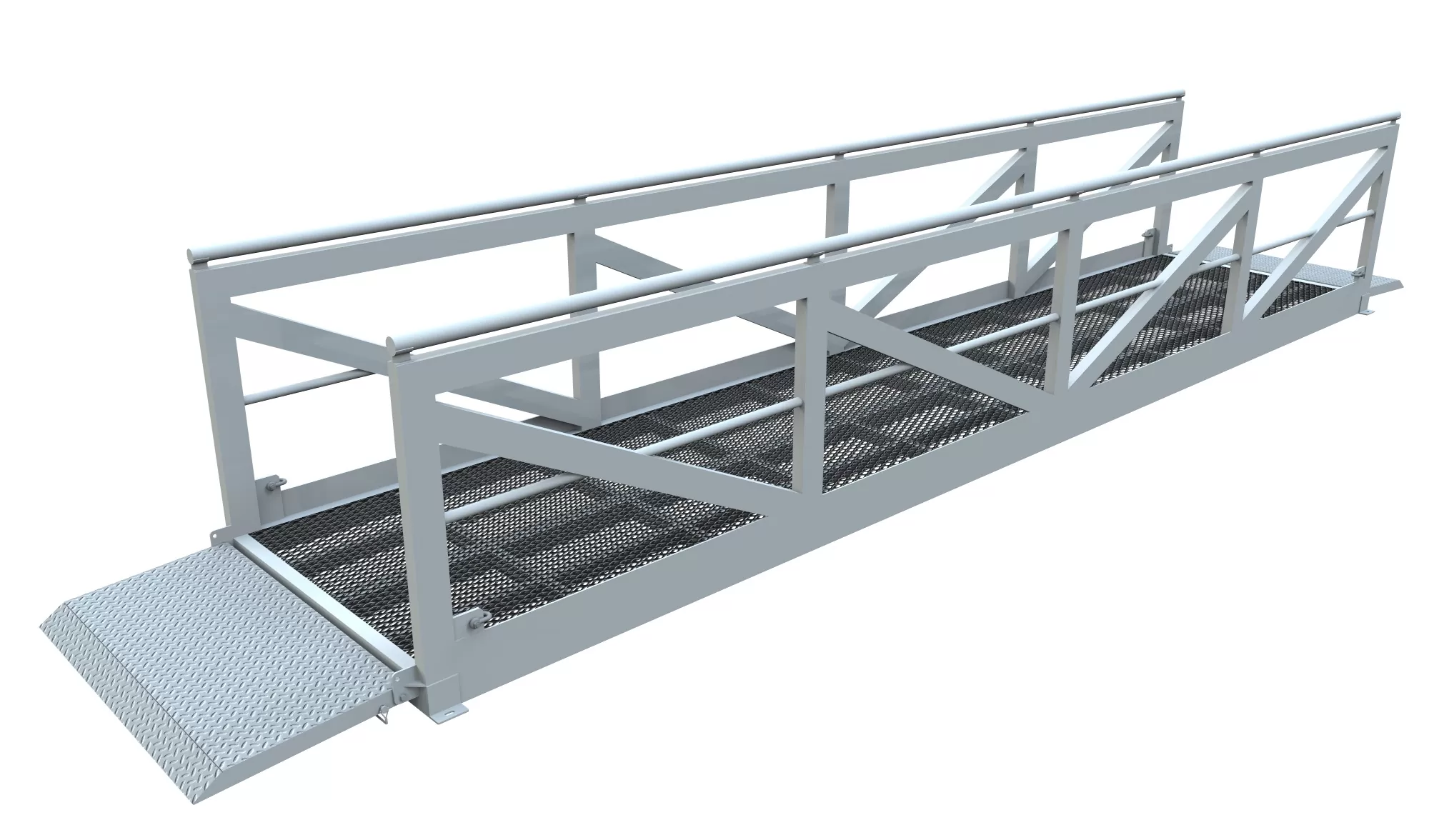

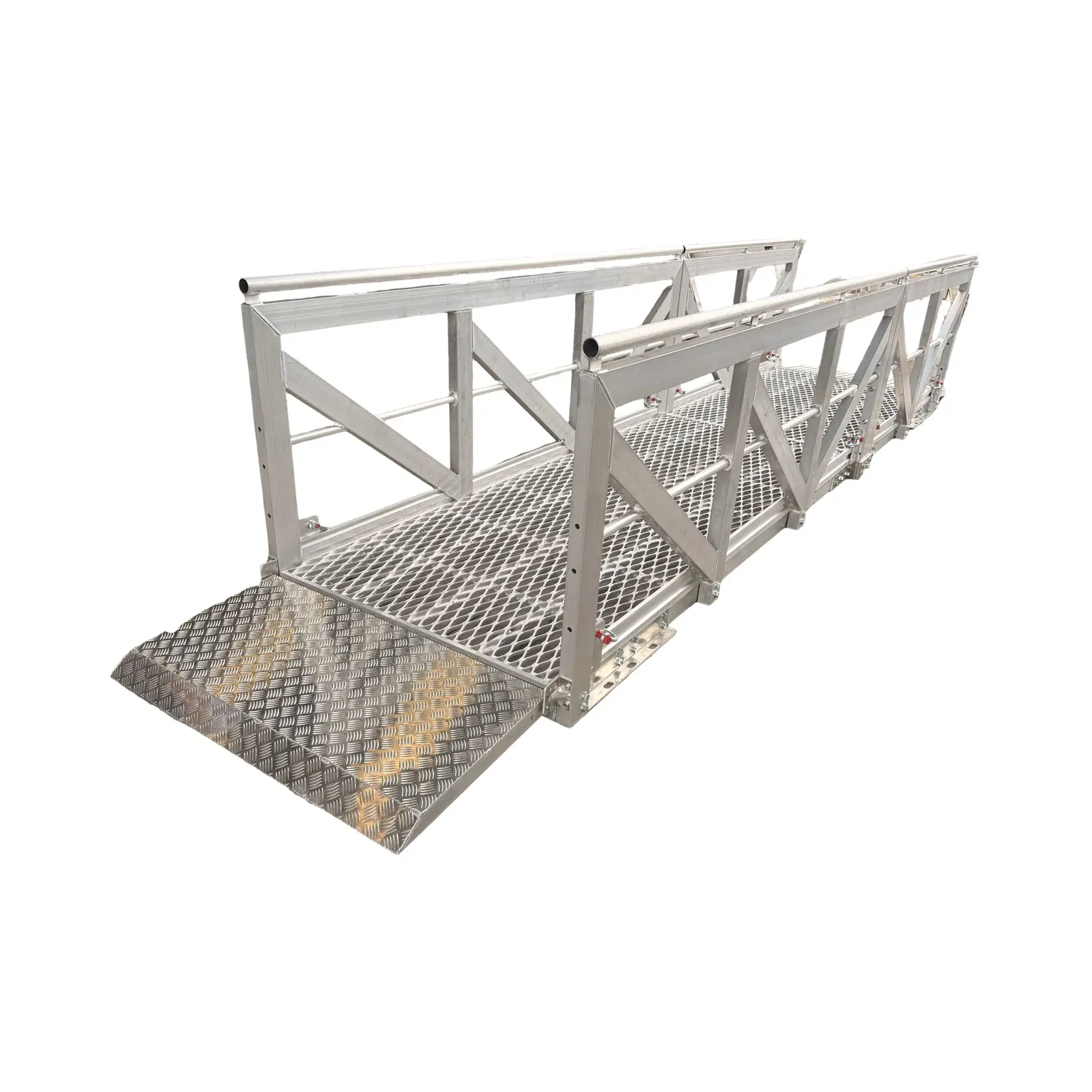

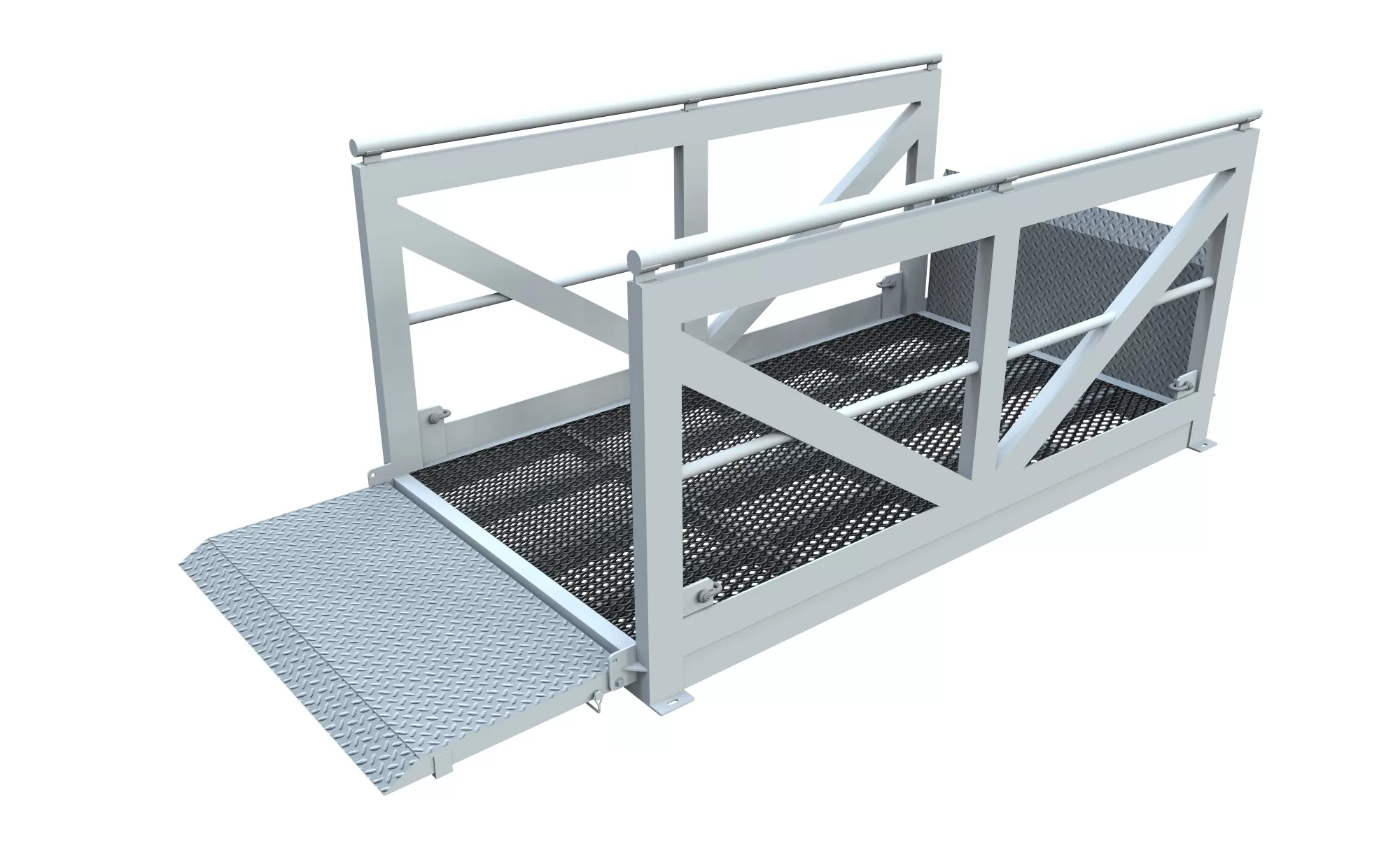

Star Aluminium Gangways

Star aluminium gangways provide elevated walkway access across industrial, marine and civil infrastructure environments. Five standard sizes span total lengths from 2,000 mm to 6,000 mm, with a walkway width of 1,200 mm and a handrail height of 1,000 mm throughout. The 2.5 kPa load rating supports regular industrial and personnel traffic without structural limitation.
Grid mesh deck options are available for environments where drainage and slip resistance are critical, particularly in wet or marine settings. Full-height handrails run the entire length of the gangway, providing continuous edge protection for operators boarding and disembarking. Integrated joining connectors allow multiple gangway units to be linked end-to-end, creating stable walkway spans to any required length. Lifting points built into the frame allow the gangway to be safely hoisted by crane or overhead equipment.
Gangway systems can be configured as fixed permanent installations or removable access systems depending on operational requirements. Modular section design supports efficient transport to site and rapid on-site assembly without specialist fabrication. All units are fitted with a compliance plate and are backed by a Lifetime Structural Warranty.

Aftercare & Maintenance

All Star Aluminium products are designed and manufactured to Australian Standards for height access and industrial equipment.
Every unit is supplied with a compliance plate and engineering certification.
Our standard products comply with WHS requirements and carry a Lifetime Structural Warranty.
Every month, we recommend that you inspect every working platform to make sure they are safe for use.
Check the platform's surface and weld points in order to ensure there is no external damage or corrosion from weather conditions that can cause a safety issue.
If any damage is found on the equipment when checking your monthly inspection routine, please mark the equipment as "out of service" and call us so we may discuss what needs to be repaired.

Frequently Asked Questions

What standard lengths are available for Star Aluminium gangways?

Star Aluminium gangways are available in five standard ramp lengths from 2,000 mm to 6,000 mm. Walkway width is 1,200 mm with a total structure width of 1,800–2,000 mm. Handrail height is 1,000 mm. Modular sections allow configurations to be extended or reconfigured to suit site-specific span and gradient requirements. Custom sizes are available on request.

Are Star Aluminium gangways fixed or removable?

Star Aluminium gangways can be designed as either fixed or removable systems depending on operational requirements. Fixed installations suit permanent access points in industrial plant and marine berths. Removable systems are suited to temporary access during construction, maintenance or seasonal operations. Modular sections support efficient on-site assembly and later removal without leaving permanent structures.

Are Star Aluminium gangways manufactured to Australian Standards?

Yes. All Star Aluminium gangways are manufactured to Australian Standards for industrial access equipment. Each gangway is supplied with a compliance plate to support site WHS obligations and engineering certification. Manufacturing is covered by the ISO 9001:2015 certified quality management system. All units carry a Lifetime Structural Warranty.

What decking and finish options are available?

Standard decking is grid mesh providing slip resistance and drainage in wet and marine environments. Optional configurations include checker plate ramp sections for equipment access, bolt-together bridge systems for longer spans, and powder coating for corrosion protection in salt-air and chemical environments. Handrail height and joining connectors are included to meet WHS guardrail requirements.

Can Star Aluminium supply gangways on short lead times?

Yes. The modular section design means gangway systems can be supplied in flat-packed form for rapid on-site assembly, reducing lead times for time-critical projects. Star Aluminium engineers can work directly with project teams on span requirements, gradient angles and WHS compliance documentation from initial consultation through to site delivery across all Australian states and territories.

What industries use Star Aluminium gangways?

Star Aluminium gangways are supplied to marine and port operations, civil infrastructure projects, construction sites, oil and gas facilities, mining operations, water treatment plants and industrial manufacturing sites. Applications include vessel boarding access, bridge construction temporary crossing, trench and drainage crossing, and elevated plant access between operating levels.
