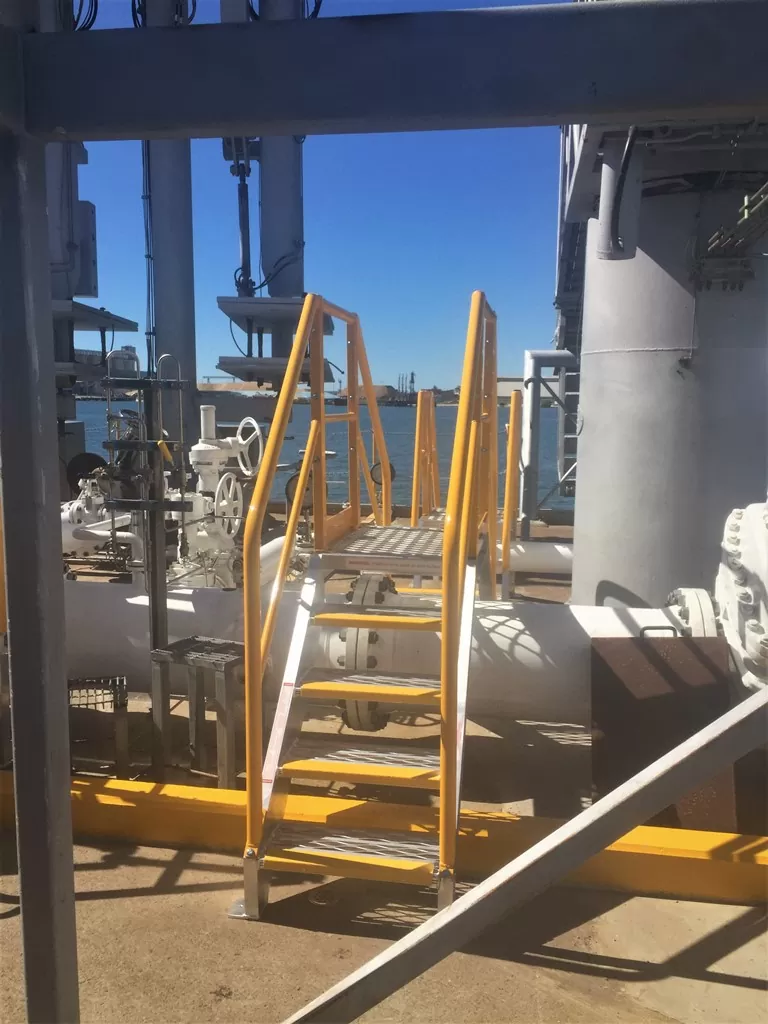

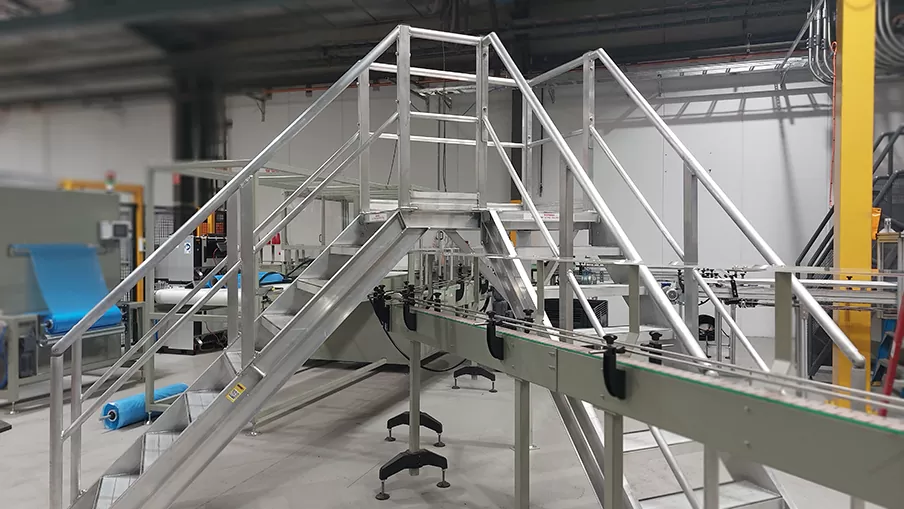

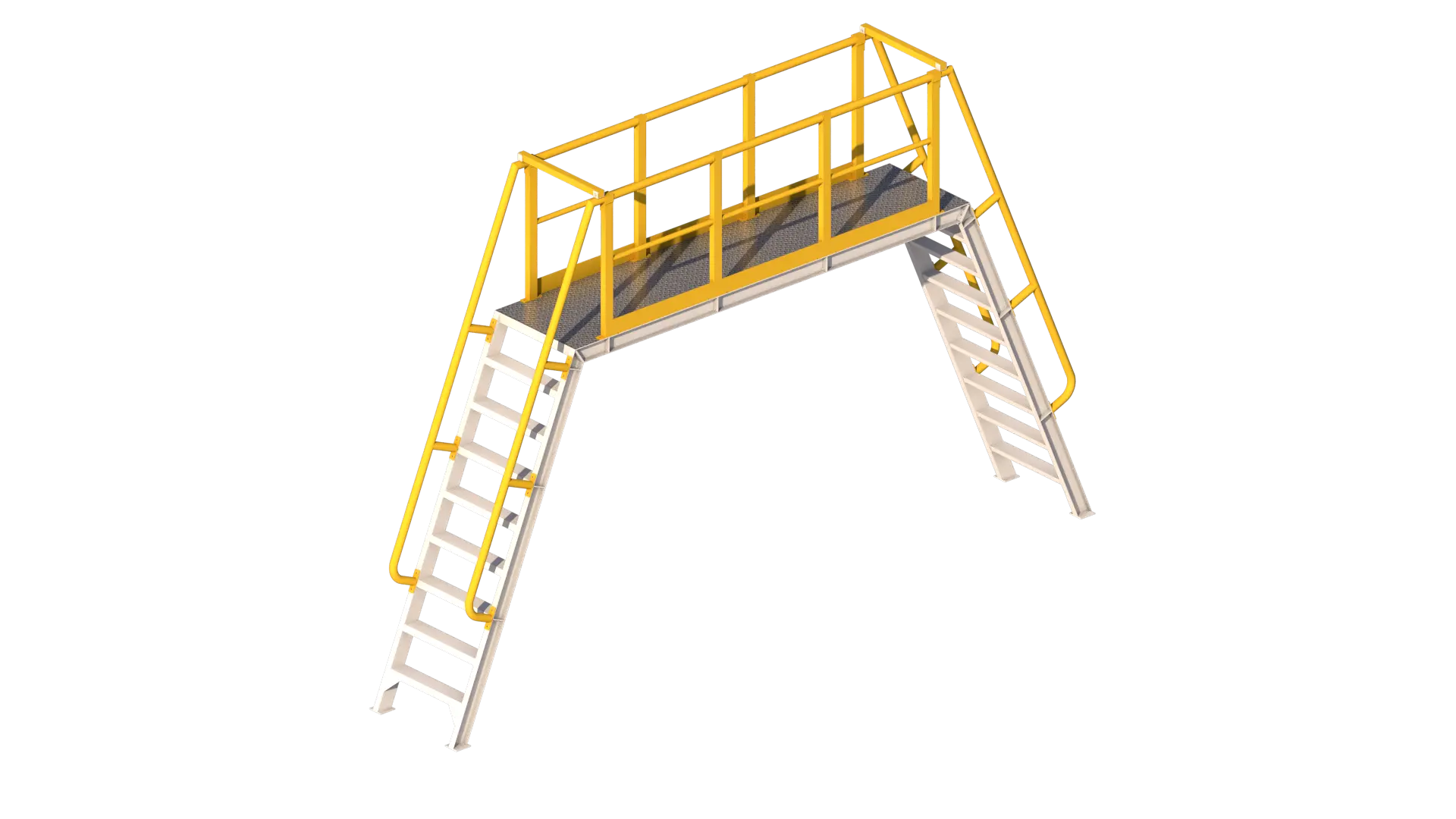

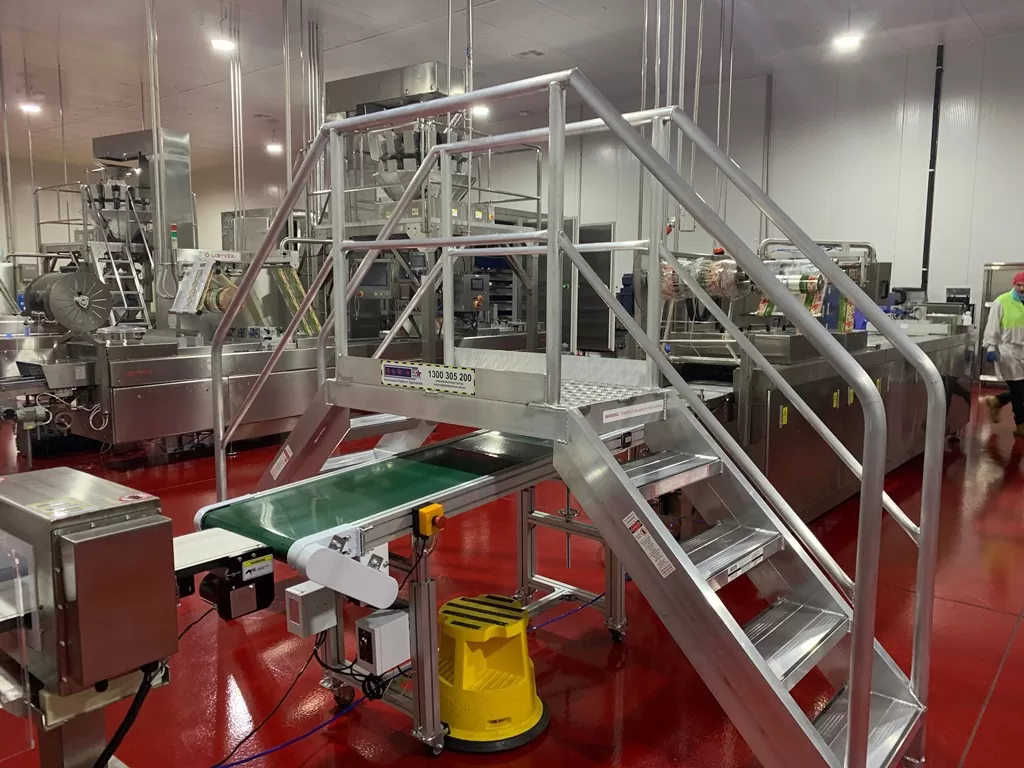

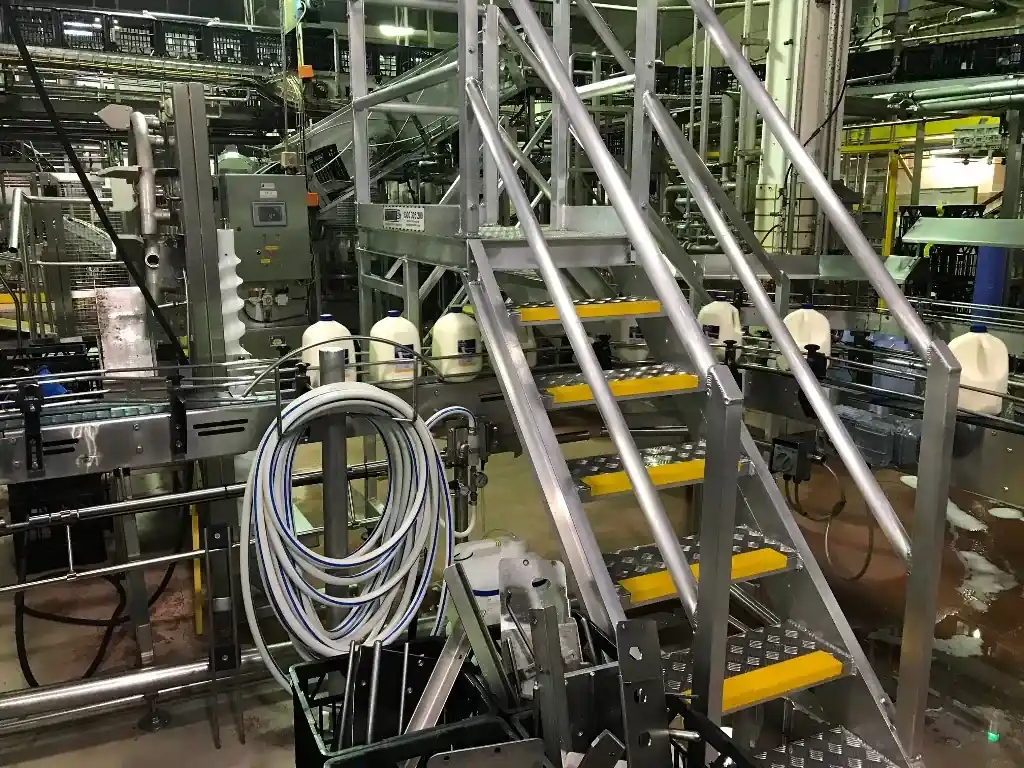

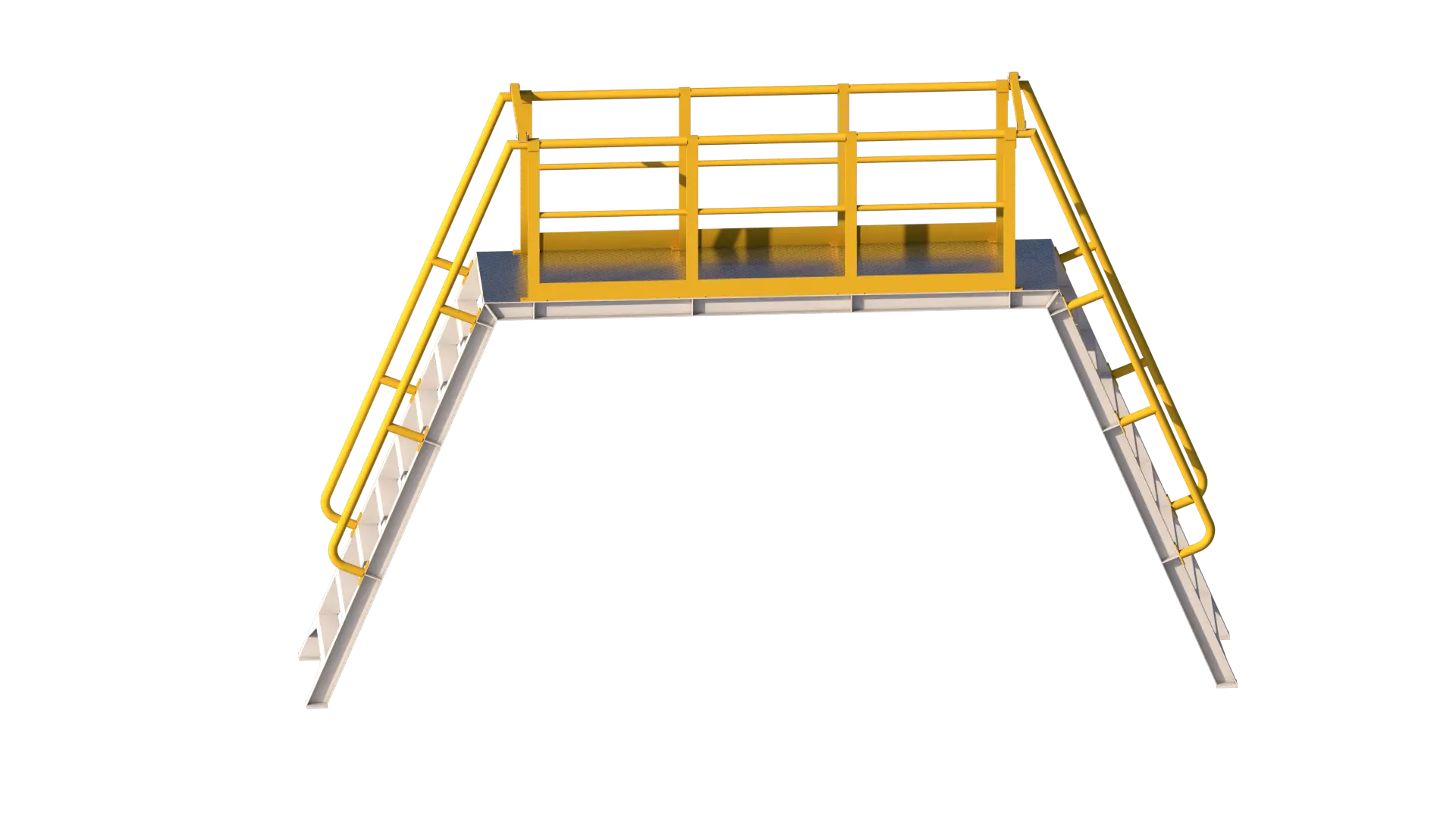

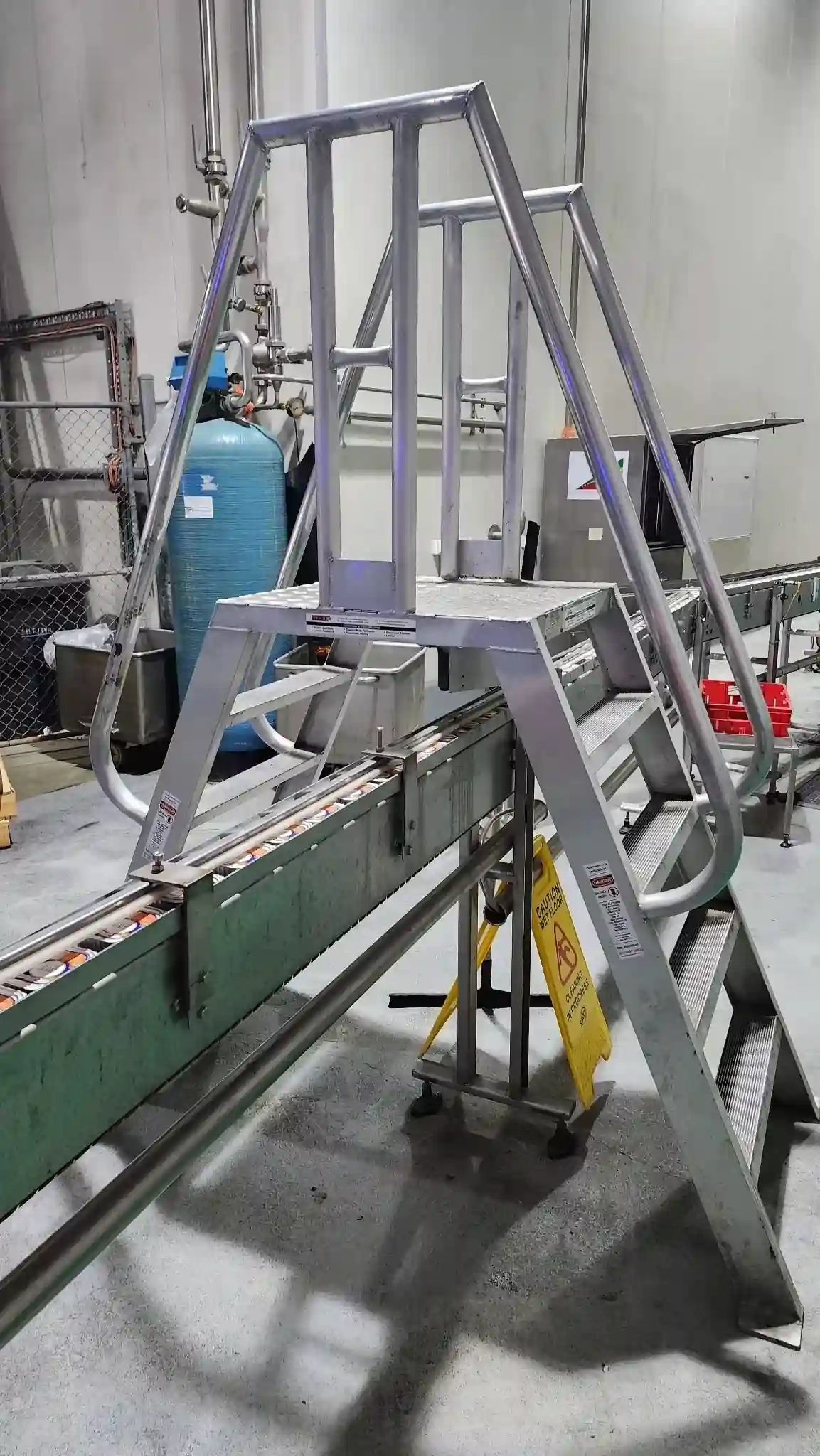

Our Industrial Crossover Platforms are lightweight, yet strong platforms that offer safe access when crossing over machinery and equipment.
They are designed to provide safe access without the use of additional ladders or steps while giving users a solid footing over moving parts.
Industrial Crossovers can also be used for access to trucks and machines.
With a load rating of 450kg*, they can handle even the heaviest of loads!
And with a handrail height of 900mm*, they’re safe and easy to use!
Plus, with our Lifetime Structural Manufacturing Warranty, you can be sure that these platforms will last long into the future!
*Specs and dimensions are approximate and subject to change without notice. If a critical measurement matters, please advise us during the quote stage so we can confirm the details for you.
| Product Code | Platform Body |
| Star PLM9 | 900mm |
| Star PLM12 | 1200mm |
| Star PLM15 | 1500mm |
| Star PLM18 | 1800mm |
| Star PLM20 | 2000mm |
| Star PLM24 | 2400mm |
| Star PLM30 | 3000mm |
| Product Code | Step A | Step B |
| Star ST750 | 750mm | 750mm |
| Star ST10 | 1000mm | 1000mm |
| Star ST12 | 1250mm | 1250mm |
| Star ST15 | 1500mm | 1500mm |
| Star ST17 | 1750mm | 1750mm |
| Star ST20 | 2000mm | 2000mm |
| Star ST22 | 2250mm | 2250mm |
Specs and dimensions are approximate and subject to change without notice. If a critical measurement matters, please advise us during the quote stage so we can confirm the details for you.
Heavy Duty platform load rated at 450kg
Complies to Australian Standards
Lifetime Structural Warranty
Aluminium Description: 60mm x 40mm x 3mm RHS, 100x40x4mm, 48mm x 4.7mm tube, 32x3mm tube, 100mm step section, 67° angle and 3mm checker plate. Alloy temper 6061T6.
Handrail height 900mm
3mm Checker Plate or (13mm mesh optional)
Platform width 700mm (internal 600mm)
Protecting the safety of our customers is a priority for us at Star Aluminium and we ensure all products are manufactured to meet both Australian Manufacturing Standards as well Safety Standards.
Our products feature a compliance plate in conjunction with engineering certification.
Our standard products comply with OH&S requirements, have a lifetime structural warranty, and meet all standards required by Australia.
Every month, we recommend that you inspect every work platform to make sure they are safe for use.
Check the platform’s surface and weld points in order to ensure there is no external damage or corrosion from weather conditions that can cause a safety issue.
If any damage is found on the equipment when checking your monthly inspection routine please mark the equipment as “out of service” and call us so we may discuss what needs repaired.
For more information on Star Aluminium Crossover Platforms, contact our team today at 1300 305 200 or click the QUICK QUOTE button to get started

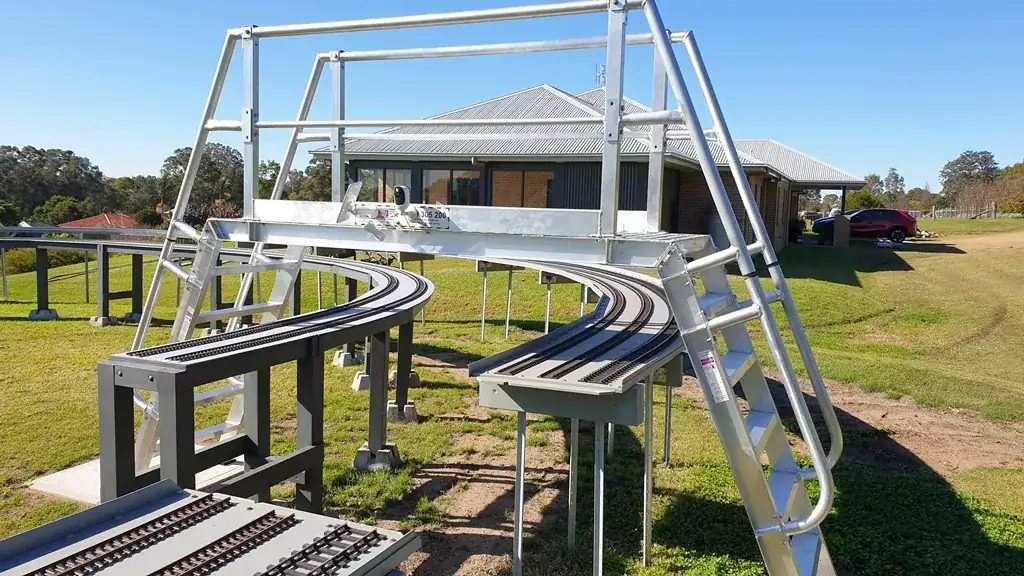

Our custom crossover solutions can be tailored to almost any height, span or footprint, giving safe access over pipework, conveyors and other plant equipment. Systems can be supplied in aluminium, steel or stainless steel to suit your site conditions and maintenance requirements.
Our loading ramps are built for regular use on busy sites, combining a strong yet easy-to-handle design. They provide secure loading and unloading for vehicles and equipment in warehouses, construction projects, domestic driveways and other environments.
Aluminium stairs from Star Aluminium provide safe, everyday access to raised areas around machinery, tanks and building entries. With stable treads and compliant handrails, they suit maintenance platforms, walkways and other industrial or commercial applications.
