Pit Access Ladders

Designed, Engineered & Manufactured in Australia

View Products Contact Us

Product video coming soon

Features & Benefits

Purpose-designed for safe entry and exit within pits, trenches and below-ground service areas
Aluminium construction delivers durability while remaining lightweight for handling and installation
Compact ladder profiles for integration within tight pit structures and confined trench spaces
Evenly spaced rungs provide stable footing during ascent and descent
Handhold extensions at the upper landing support safe transitions in and out of the pit
Ladder configurations tailored to suit varying pit depths and site layouts
Telescopic handrails deploy for safe access and stow flat when not in use
Each unit supplied with a compliance plate to support WHS requirements
Backed by a Lifetime Structural Warranty

Download Product Brochure

Specifications

Specification	Detail
Available Heights	1.2M / 1.5M / 1.8M / 2.0M / 2.2M / 2.4M / 2.8M / 3.0M / 3.2M / 3.5M / 3.8M / 4.0M / 4.2M / 4.5M
Ladder Angle	Vertical 90° or inclined 70°
Alloy	6061 T6 aluminium
Load Rating	150 kg
Rungs	Anti-slip, 100 mm step section
Handrails	Telescopic; extend for access, retract when not in use
Fixing	Wall brackets included
Custom Heights	Available on request

Custom Needs?

Standard Inclusions

Telescopic Handrails

90° Ladder Angle

Ladder Rungs

Fitted Compliance Plate

Star Aluminium Pit Access Ladders

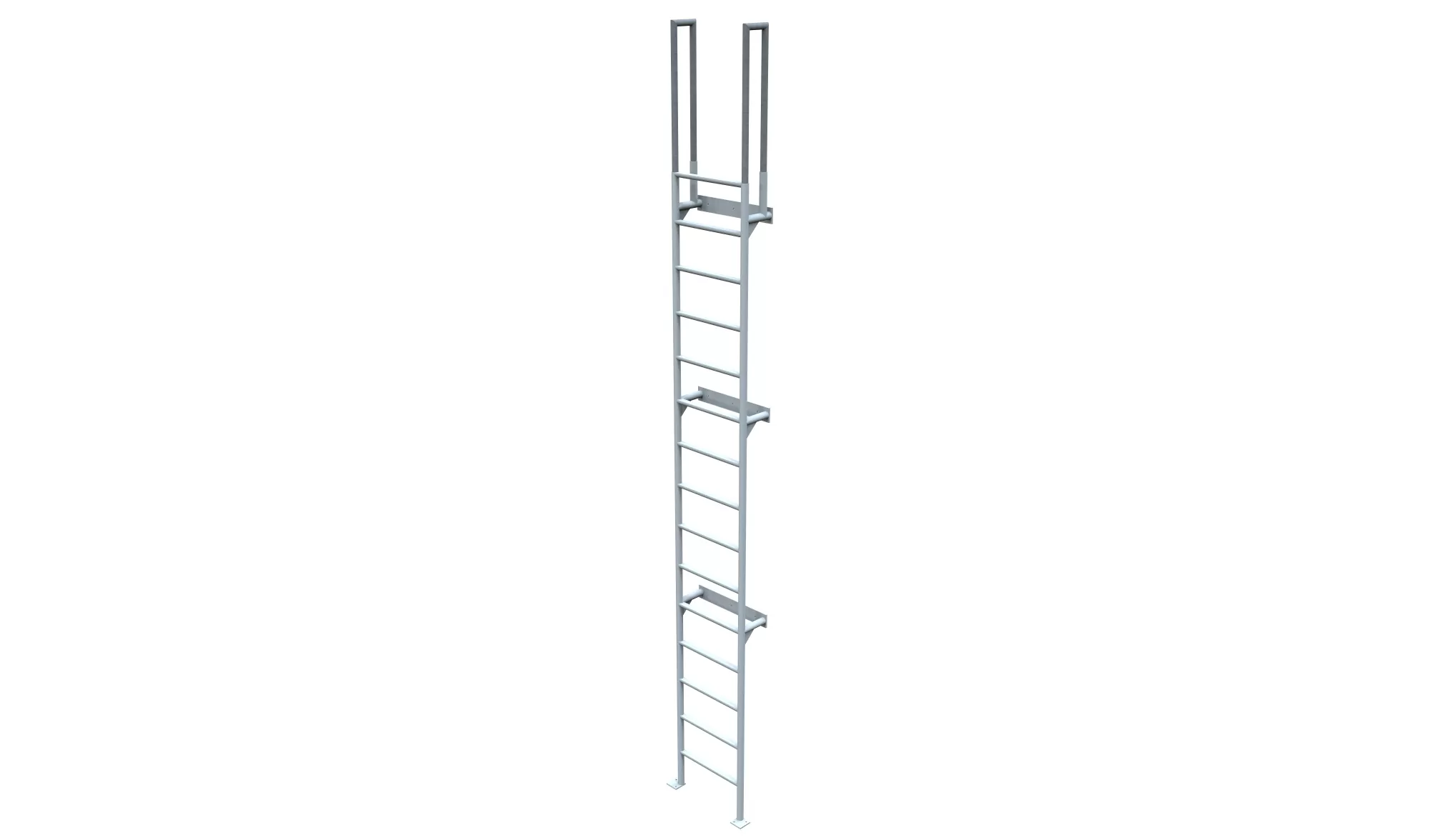

Star pit access ladders are engineered specifically for safe and controlled vertical access within pits, trenches and below-ground service areas across industrial, infrastructure, utilities and plant environments. The vertical 90° ladder configuration is designed for use in confined spaces where a minimal footprint is essential for integration within existing pit structures.

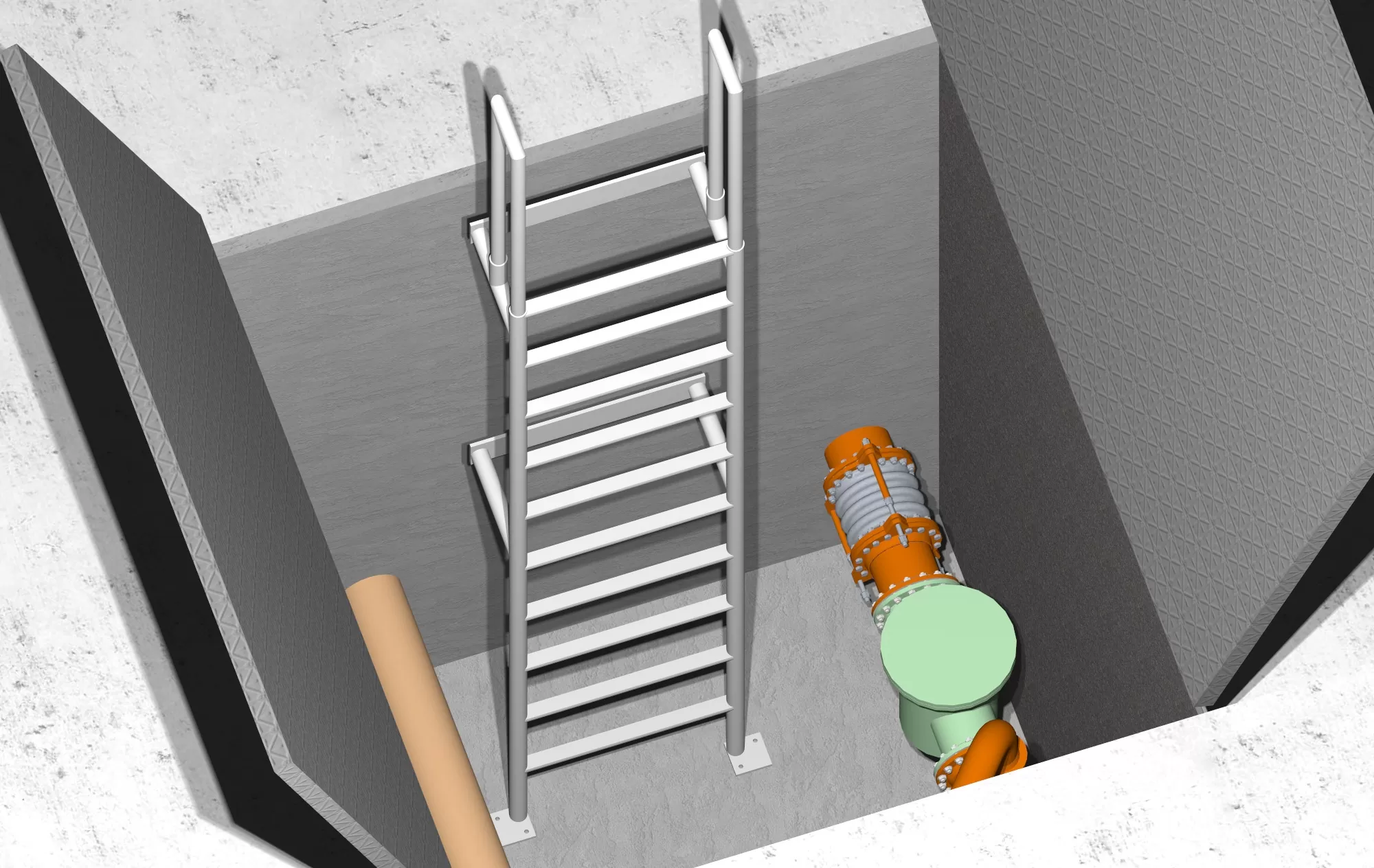

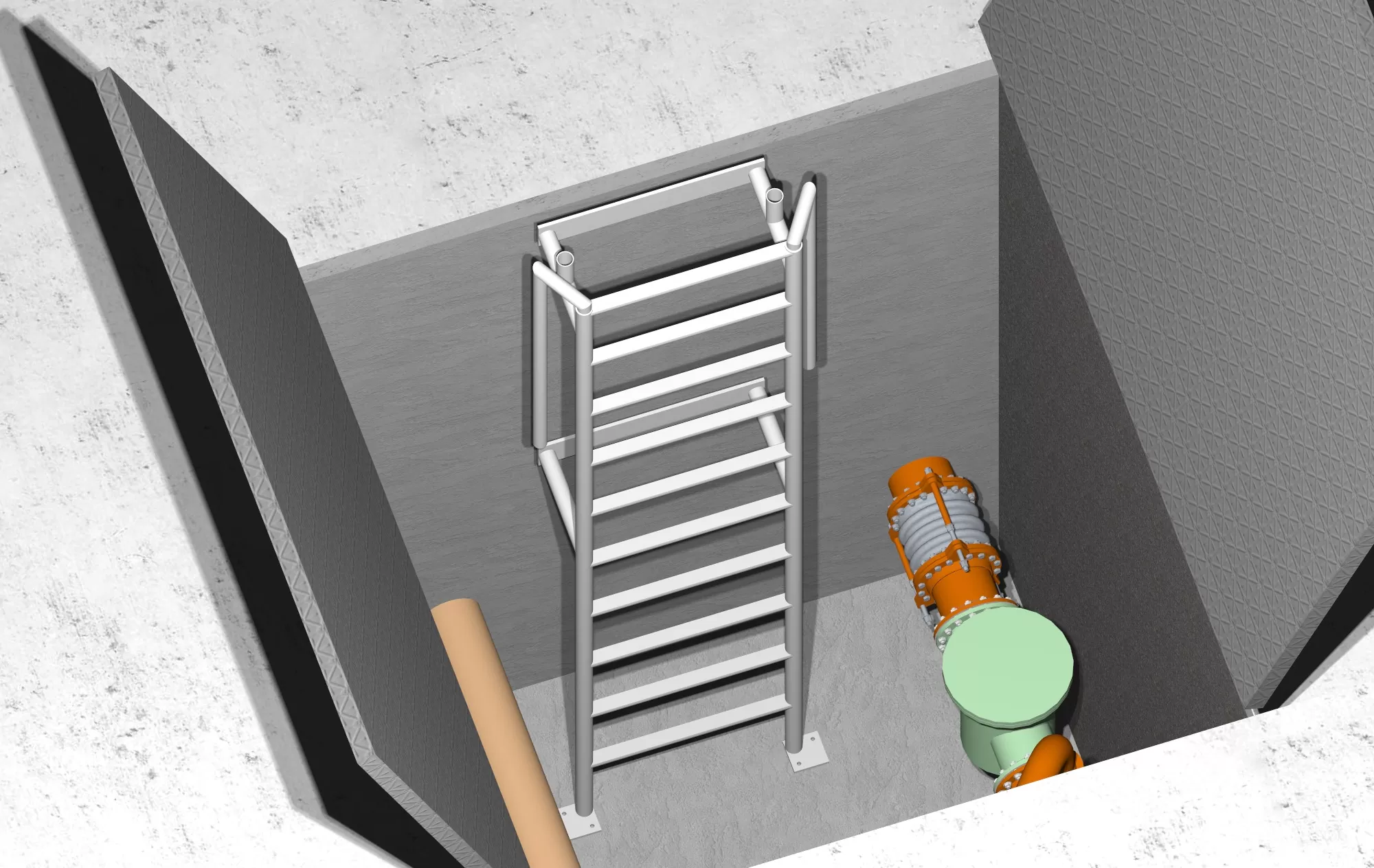

Telescopic handrails extend at the upper landing to provide secure hand support during the transition in and out of the pit, then retract flat when not in use to keep the top of the opening clear. Evenly spaced heavy-duty aluminium rungs provide a consistent climbing rhythm for operators making repeated daily descents. Compact profiles allow the ladder to integrate within the tight clearances typical of underground service pits and utility trenches.
Ladder configurations can be adjusted to suit varying pit depths and site-specific access requirements. Each unit is supplied with a compliance plate, manufactured to Australian Standards and backed by a Lifetime Structural Warranty. Custom configurations are available for non-standard pit geometries or access point constraints.

Aftercare & Maintenance

All Star Aluminium products are manufactured to Australian Standards, with engineering certification and a fitted compliance plate on every unit.
Each product is backed by a Lifetime Structural Warranty and designed for sustained use in demanding industrial environments.
We recommend monthly inspections of the unit's surface and weld points for signs of damage or corrosion. Equipment showing damage should be marked out of service immediately.
If damage is identified during inspection, contact your Star Aluminium representative to arrange assessment and repair.
Australia-wide delivery available. Contact us to discuss project timelines, volume requirements or custom configurations.

Frequently Asked Questions

What ladder angles are available for Star Aluminium pit access ladders?

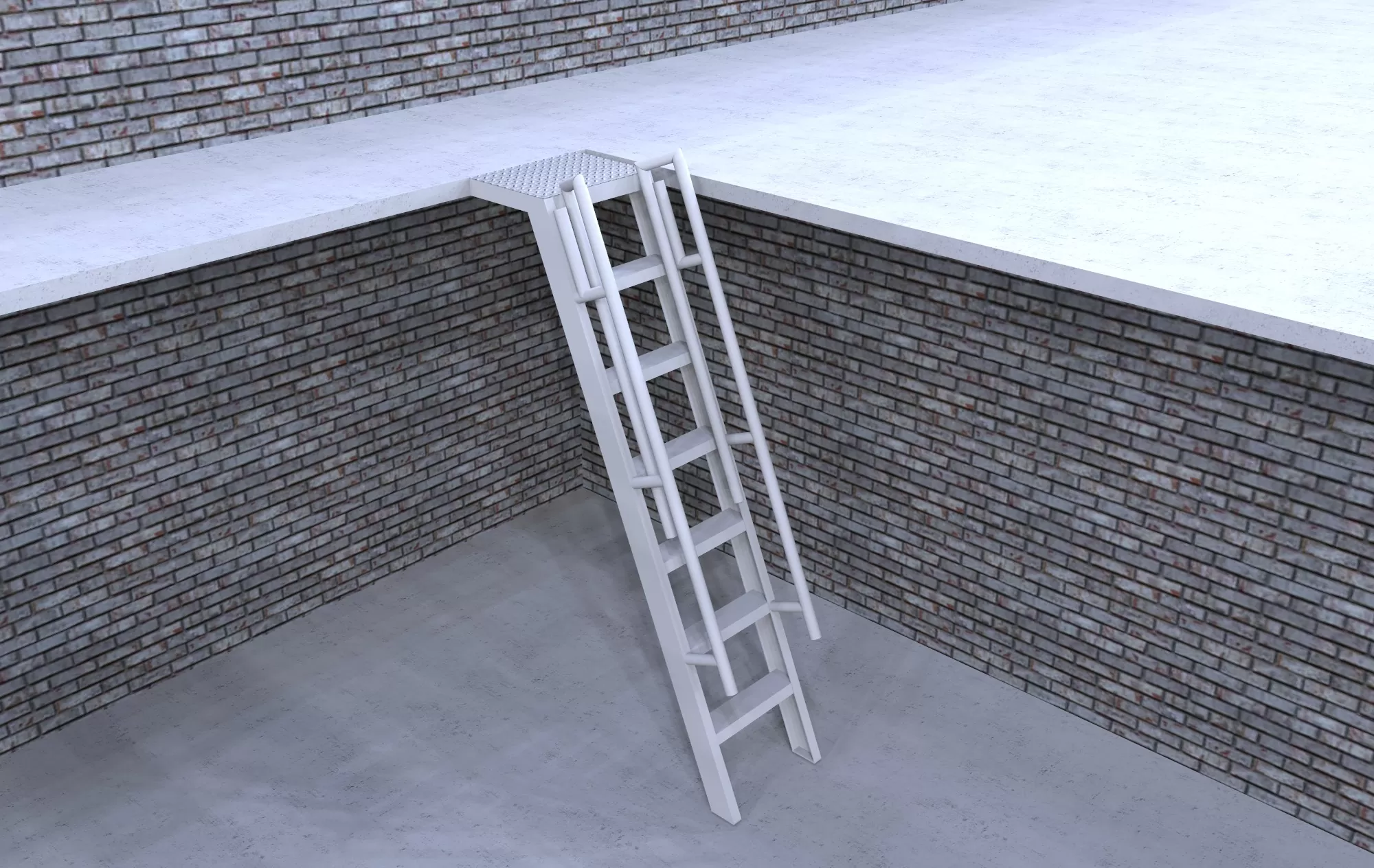

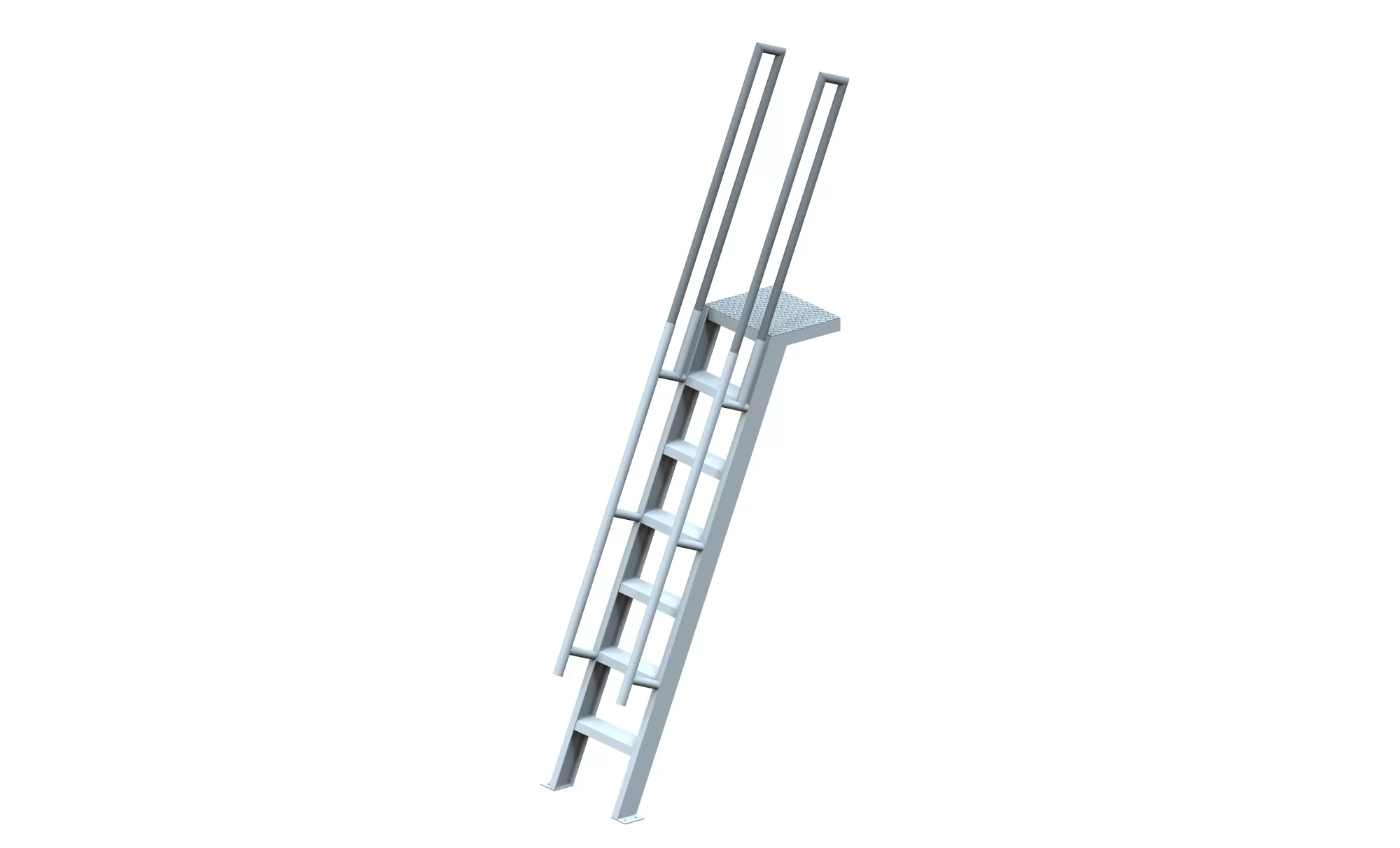

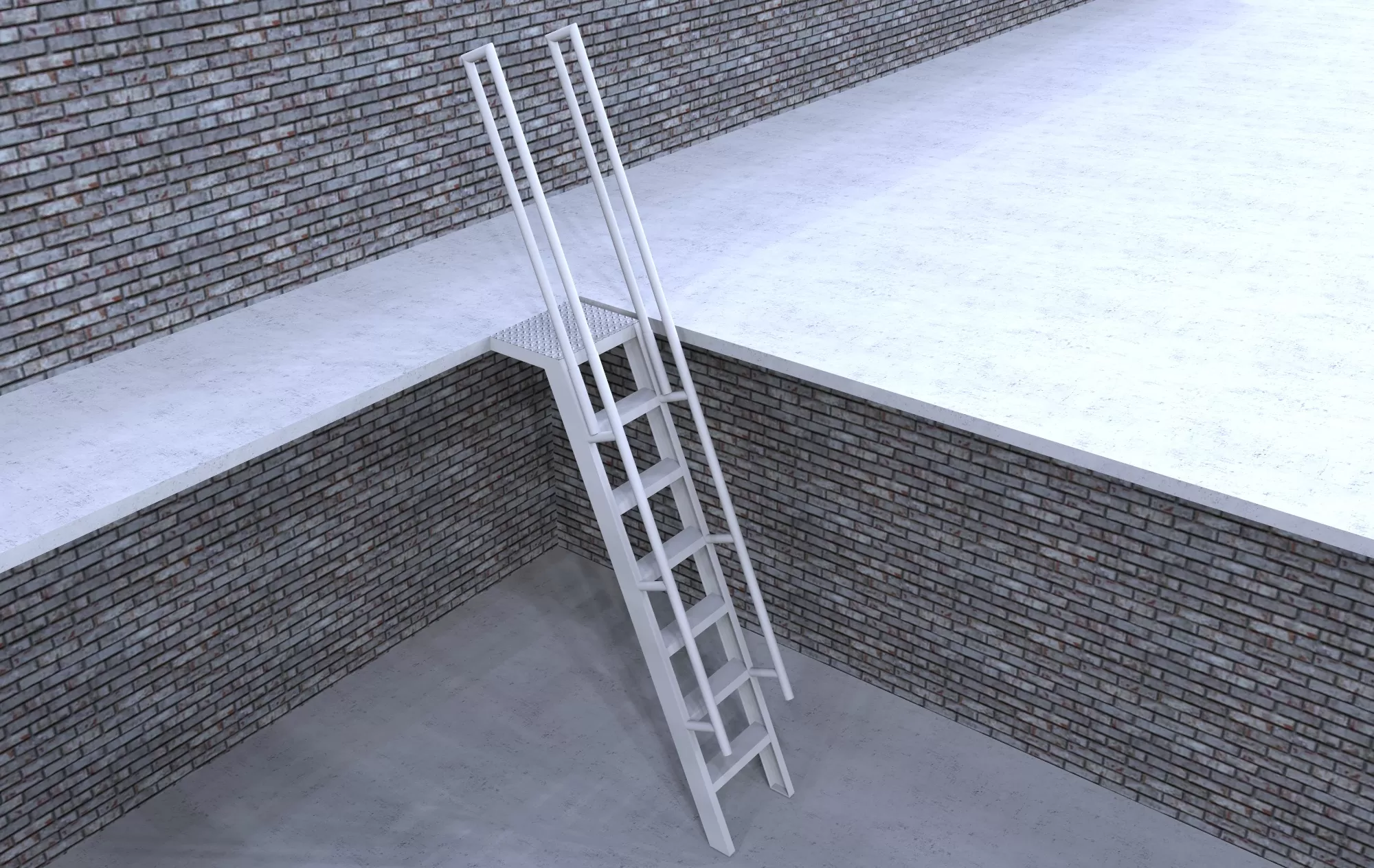

Star Aluminium pit access ladders are available in 90Â° vertical and 70Â° inclined configurations. The vertical 90Â° design is suited to confined pit entries where horizontal space is limited. The 70Â° option provides a slightly inclined climbing angle for sites where access frequency or load requirements favour a less vertical approach. Both configurations use evenly spaced rungs and telescopic handrails for safe entry and exit at the upper landing.

What safety features do Star Aluminium pit access ladders include?

Standard safety features include telescopic handrails that extend above the pit opening to provide a secure handhold during entry and exit, evenly spaced rungs for consistent foot placement, and a compact profile designed to fit within confined pit and trench openings without obstructing the working environment below. Each unit is fitted with a compliance plate to support site WHS obligations and carries a Lifetime Structural Warranty.

What environments are pit access ladders designed for?

Star Aluminium pit access ladders are designed for below-ground and confined-space access environments including utility pits, service trenches, inspection chambers, drainage infrastructure, underground plant rooms and subsurface maintenance access points. The aluminium alloy construction provides corrosion resistance in wet and chemically exposed underground environments where steel would require ongoing maintenance or replacement.

Are Star Aluminium pit access ladders manufactured to Australian Standards?

Yes. All Star Aluminium pit access ladders are manufactured to Australian Standards for industrial ladder and access equipment. Each unit is fitted with a compliance plate to support site WHS obligations. Manufacturing is covered by the ISO 9001:2015 certified quality management system. All units carry a Lifetime Structural Warranty and are rated to 150 kg SWL.

Can pit access ladders be configured to non-standard pit depths?

Yes. Star Aluminium pit access ladders are available in tailored configurations to suit non-standard pit depths and access opening dimensions. The compact profile design accommodates tight entry dimensions typical of civil infrastructure and utilities environments. Star Aluminium engineers work directly with customers from specification to delivery. Contact the team to discuss depth, angle, handrail height and lead time requirements for your project.

What industries use Star Aluminium pit access ladders?

Star Aluminium pit access ladders are installed across water and wastewater utilities, telecommunications infrastructure, electrical distribution networks, civil construction, mining subsurface access, oil and gas below-grade plant, and local government infrastructure maintenance programmes. Applications include service pit entry, inspection chamber access, underground valve chamber maintenance, and any subsurface environment requiring a permanent, compliant fixed-access solution.
