OUR PRODUCTS

ALUMINIUM TRESTLES AND PLANKS

Click for full size images

STAR ALUMINIUM TRESTLES AND PLANKS

Our innovative Aluminium trestle design has many benefits and is the perfect way to provide access in a variety of situations.

It can be used as an entrance or exit point, meaning there’s no need for you to carry around bulky ladders from location to location.

Each Aluminium trestle comes with an added feature that allows it to double up and function as both a sturdy platform and ramp will ensure those tricky tasks are made simple.

Our newly designed Aluminium trestles have been built with two functions in mind:

They are fully welded to prevent breaking under pressure.
Our design team has seen fit to include one side to function effectively either as a rung at ground level or to allow users to scale heights by offering safe steps when set against walls.

Aluminium Trestles and Planks

Star Aluminium designs and manufactures aluminium trestles and planks that provide safe, lightweight, and durable access for painting, construction, and maintenance work. Each unit is engineered for stability and strength. They meet Australian safety standards for both professional and domestic applications. Review the detailed product features below to find the perfect setup for your next project.

Why Choose Our Aluminium Trestles and Planks for Your Worksite?

Opting for aluminium provides clear advantages. Our trestles and planks offer superior longevity compared to traditional materials. They resist rust and corrosion completely. This makes them ideal for outdoor and high-moisture environments. The systems are also easy to handle. This efficiency saves time during setup and packing down.

Our newly designed aluminium trestles serve two distinct functions.

Fully Welded Construction: All components are fully welded. This prevents breakage and structural failure under load pressure.
Dual-Function Side Rail: Our design features one side engineered for dual use:
- It functions as a secure rung at ground level.
- It provides a safe way to scale heights when positioned against a vertical surface.

This engineering ensures maximum durability and versatility on-site. Invest in equipment that meets the demands of a busy Australian worksite.

Are Aluminium Trestles Safe for Construction and Painting Use?

Safety is non-negotiable for working at height. Our aluminium trestles are built to withstand strict load requirements. Each unit provides a stable, certified base. When combined with our certified planks, the system offers a secure work area.

Key Safety Features:

High-strength aluminium construction.
Certified load ratings.
Wide base design for enhanced stability.

They are suitable for all construction, painting, and maintenance tasks.

Lightweight and Durable Aluminium Planks for Every Job

The plank is the working surface; it must be reliable. Our aluminium planks and trestles provide a high-performance system. The planks are lightweight, yet highly robust. They will not warp or splinter like timber planks. Their non-slip surfaces ensure maximum grip. This durability guarantees a safe, long-lasting working platform for every project.

How to Select the Right Trestle Height and Plank Length

Choosing the right equipment dimensions is vital for safety.

Trestle Height: Select a trestle that positions the plank at a safe, ergonomic height. This reduces strain and overreaching.
Plank Length: Ensure the plank length extends adequately beyond the trestle supports. This is crucial for stability and safe load distribution.

Consult our team for specific guidance on selecting the optimal aluminium trestle planks setup for your site requirements.

Safe and Adjustable Trestle Systems for Domestic and Industrial Projects

Our trestle systems offer critical versatility. The height is easily adjustable. This allows one system to service multiple tasks and ceiling heights. The aluminium trestles are stable enough for demanding industrial use. They are also simple and light enough for safe domestic painting jobs. This adaptability makes them a highly efficient site investment.

We offer safety handrail systems built explicitly for our trestles and planks.

The safety handrail system components include:

Telescopic handrails
Outriggers
Clamps
Braces

Users can assemble this system for diverse industrial and domestic applications. This covers tasks such as house painting, roof plumbing, exterior maintenance, and gardening.

Plank clamps are also available for purchase. These clamps secure two aluminium planks together. This ensures balance is evenly distributed across both planks. This action prevents any dangerous bowing of the walking surface.

Buy Aluminium Trestles and Planks Online with Fast Australia-Wide Delivery

Ready to secure your access equipment? Browse our range of aluminium trestles and planks online today. Ordering is straightforward and efficient. We commit to fast, reliable delivery service. Get your required products delivered quickly across Australia.

TRESTLES AND PLANKS PRODUCT FEATURES

Our aluminium trestles and planks are designed to provide safe, lightweight, and durable access for painting, construction, and maintenance work. Each unit is precision-engineered for stability and strength, meeting Australian safety standards for both professional and domestic applications. Review the detailed product features below to find the perfect setup for your next project.

These access components are engineered for maximum safety and performance on-site. Key features can be listed as follows:

- Heavy-duty, surface-gripping rubber infills enhance stability
- All planks are 225mm wide and 50mm high
- Load rated up to 225kg

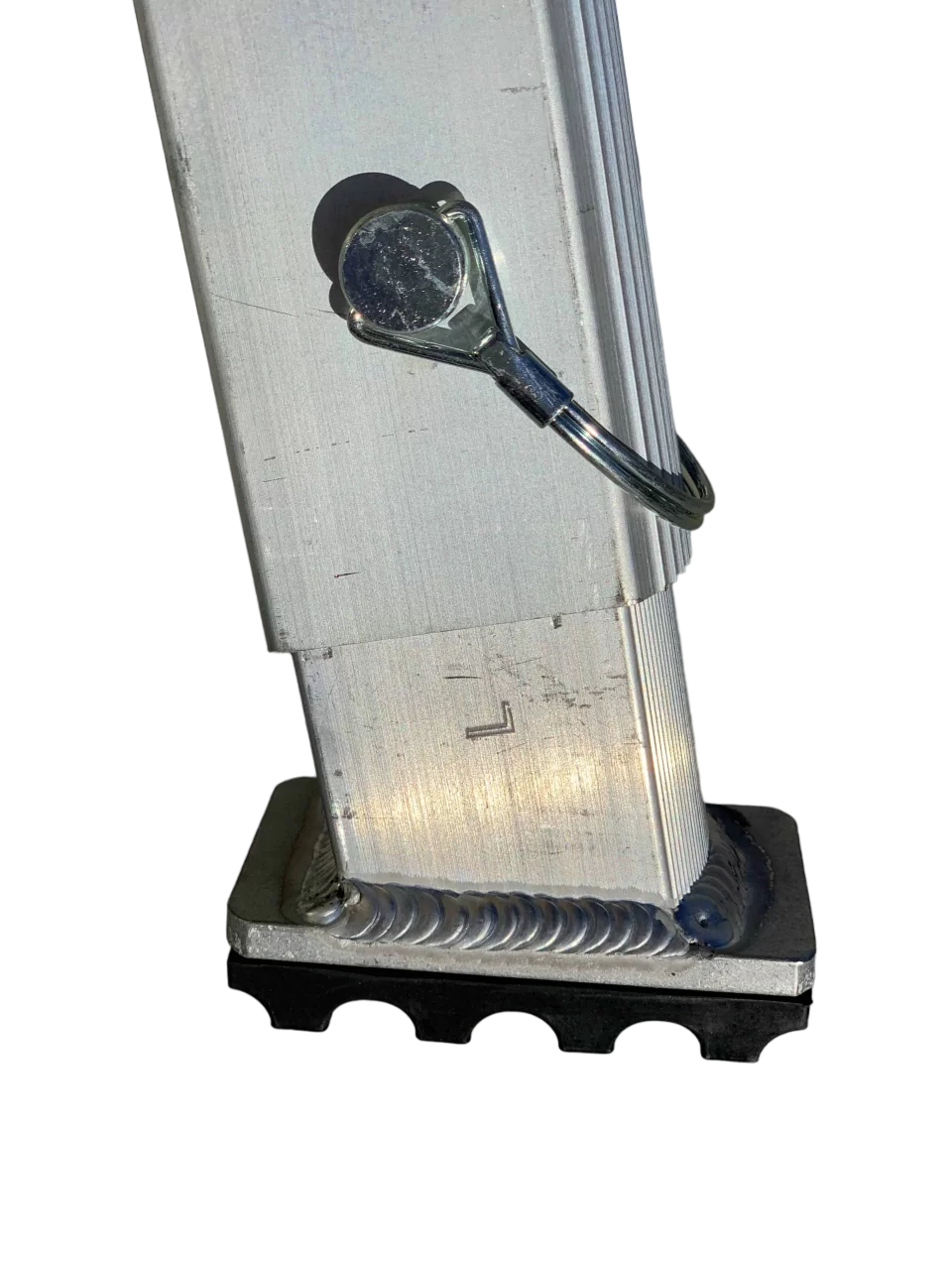

PAINTERS TRESTLES WITH ADJUSTABLE LEGS

We understand that not everyone is the same, which is why our trestles are adjustable in height, meaning they will fit anyone and everyone.

They are perfect for uneven ground, as they have adjustable legs which can be altered to create a perfectly levelled surface.

Description	Weight	Load Rating	Width of Trestle Top	Width of Trestle Bottom	Trestle Leg Adjustment

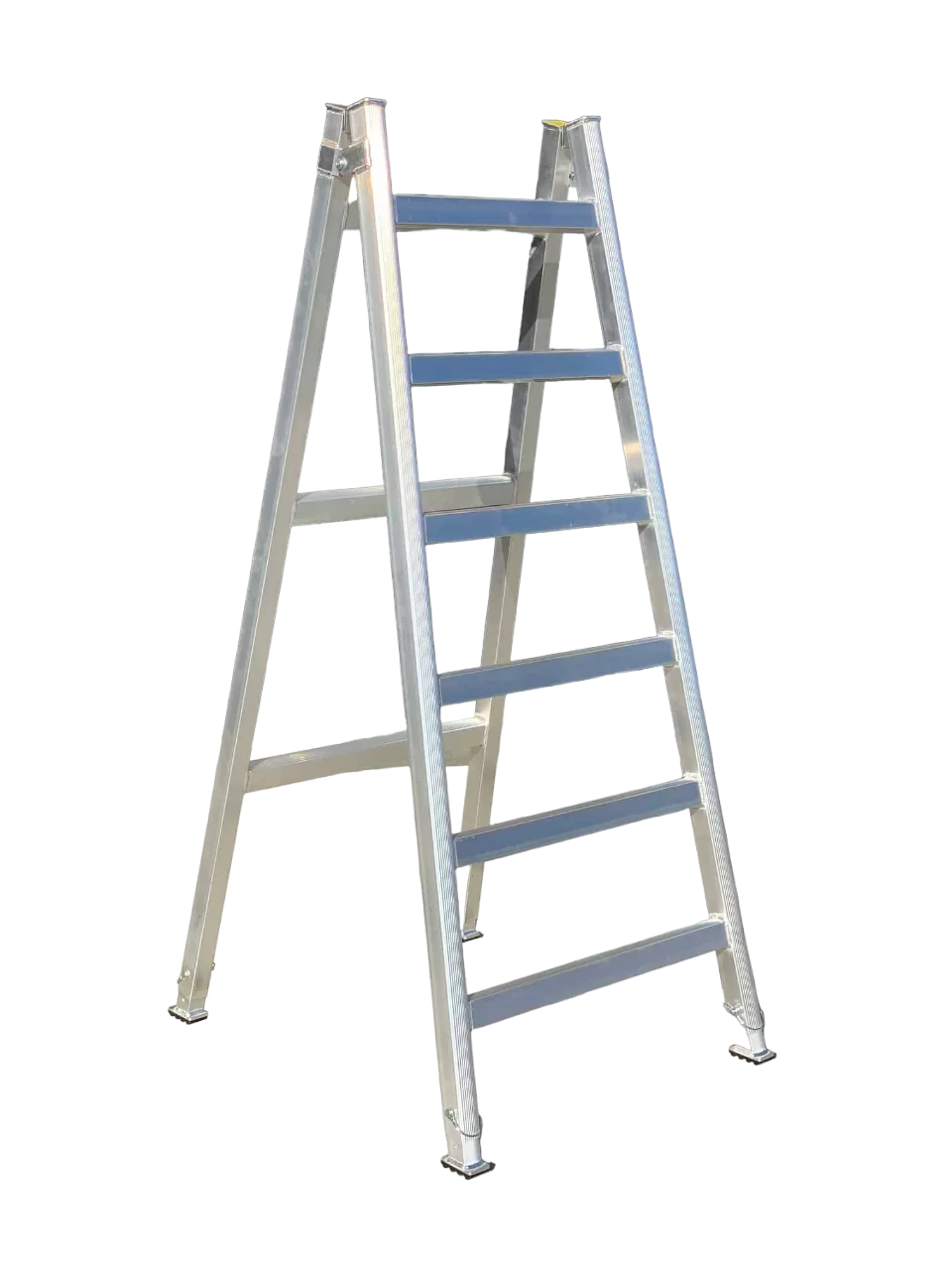

1.8M Trestle	17.1kg	225kg	600mm	810mm	250mm
2.4M Trestle	22kg	225kg	600mm	910mm	250mm

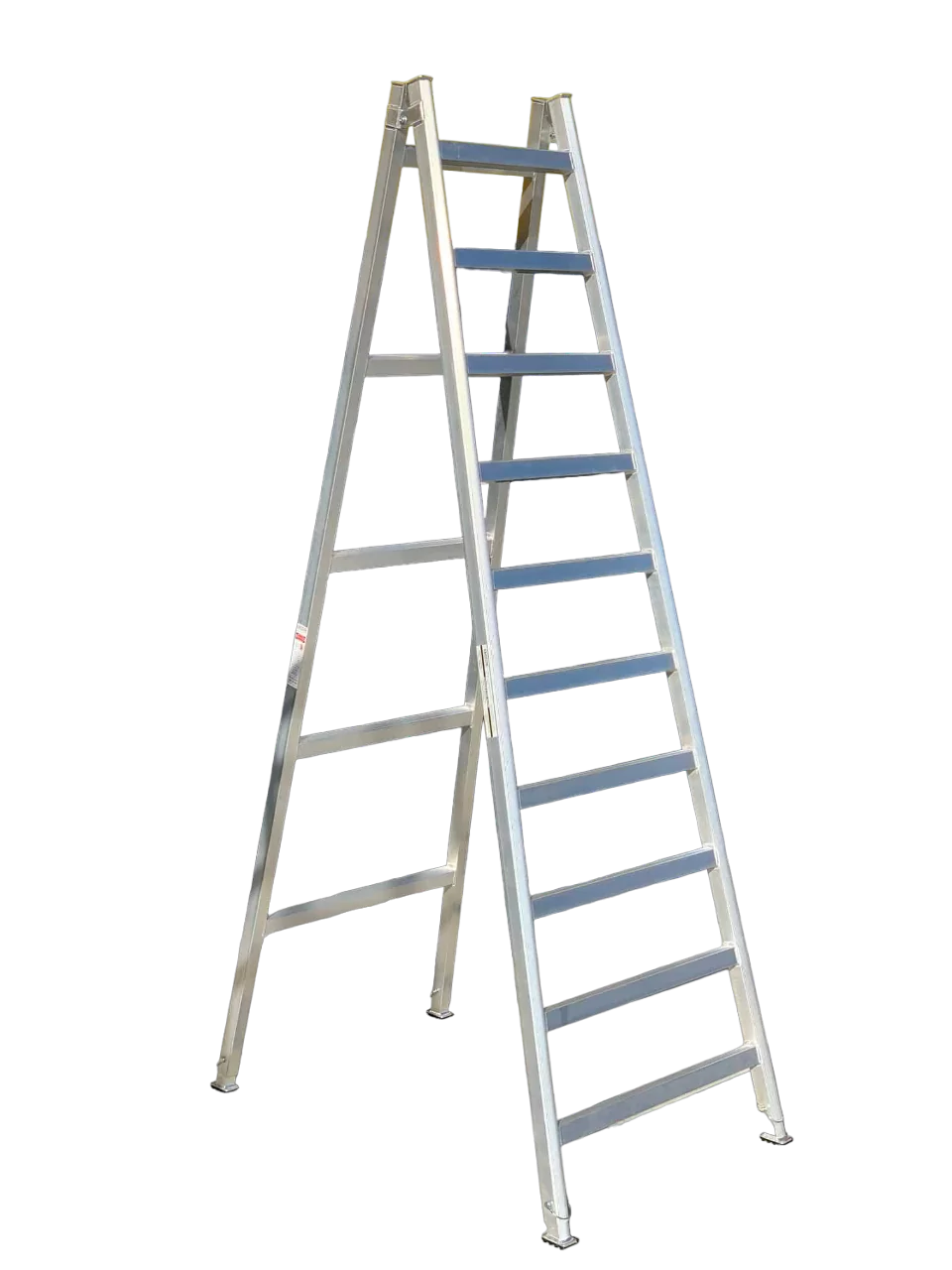

3.0M Trestle	27.1kg	225kg	600mm	970mm	250mm

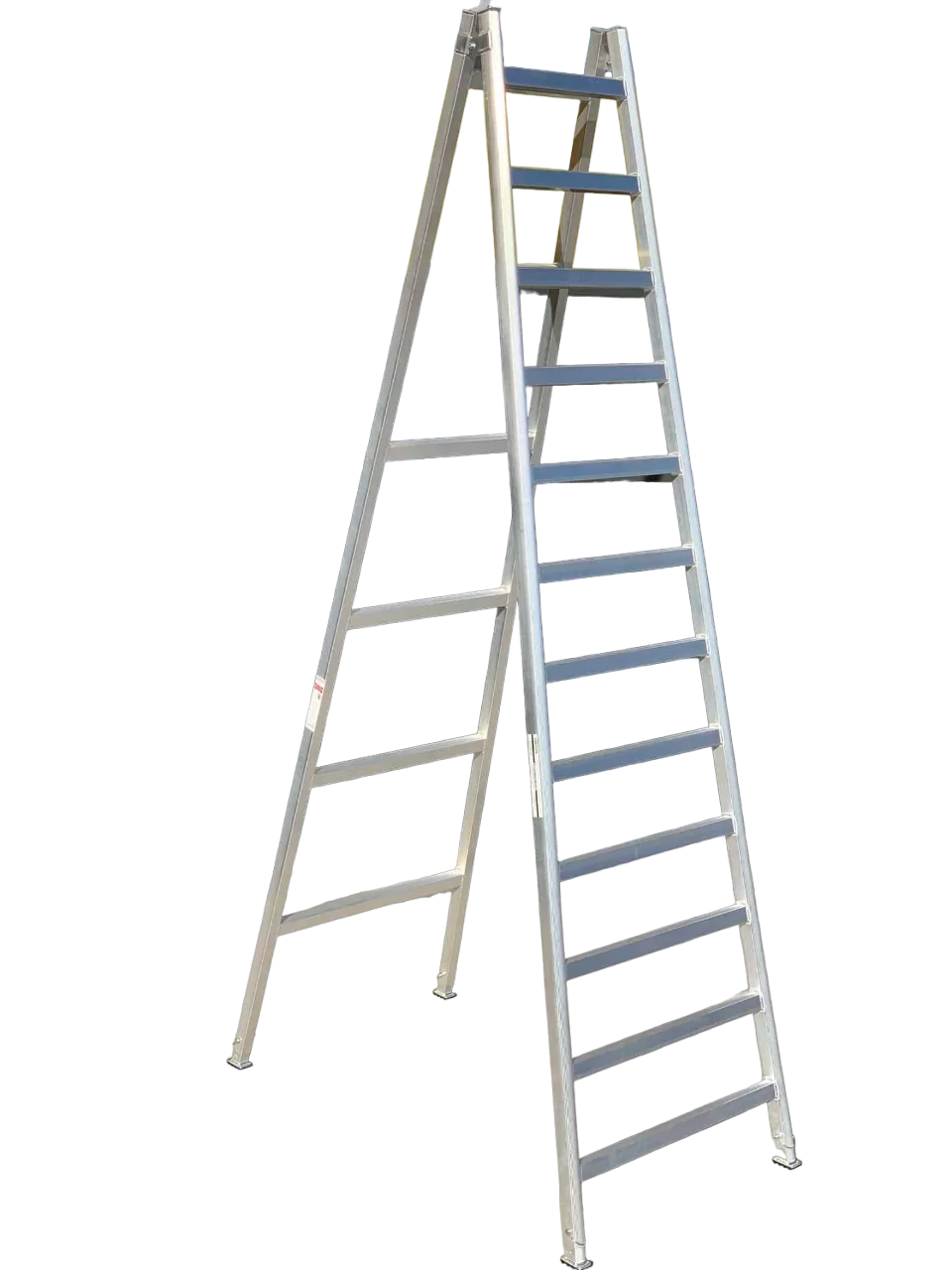

3.6M Trestle	32.4kg	225kg	600mm	1040mm	250mm

ALUMINIUM PLANKS

Planks	Weight	Load Rating	Width
3M	12kg	225kg	225mm
4M	15kg	225kg	225mm
5M	19kg	225kg	225mm
6M	23kg	225kg	225mm

FREQUENTLY ASKED QUESTIONS

When should a trestle platform be used?

A trestle platform is used for any activity requiring elevated work positioning. This includes construction, painting or window cleaning. Trestles provide a solid, stable surface for the worker. This stability directly reduces the chance of injury.

How do you use trestles safely?

Safe use requires specific checks:

Always ensure the trestles are stable and level.
Never stand on the trestles if they are visibly unstable or wobbly.
Use the correct size trestles specific to the job task.
Exercise caution when moving them due to their weight.

Can you use trestles on site?

Yes, trestles can be used on site. You must ensure they are stable and level before use. It is also mandatory to confirm there is adequate space on site for a safe setup.

What is the difference between trestles and planks?

Trestles provide the adjustable support structure. Planks are the non-adjustable working surface. Trestles offer versatility for different heights. Planks maintain a fixed elevation. Additionally, trestles are often lighter than planks, making transport and setup easier.

How do you use planks safely?

To ensure safe plank use, follow these steps:

Verify that the planks are stable and level between supports.
Never stand on planks that appear unstable or wobbly.
Always use the correct size planks for the span and load.
Handle planks carefully during transport due to their mass.

Can you use planks on site?

Yes, planks can be used on-site. Primary safety requirements are stability and level placement. Ensure the worksite provides sufficient clear space to safely set up the planks.

What are the benefits of adjustable leg trestles?

The main benefit is versatility. Adjustable leg trestles accommodate a variety of different heights. This makes them highly adaptable to a wide range of job requirements. They are typically lighter than fixed-height trestles. This ease of transport and setup makes them a popular and efficient site choice.

What are trestles and staging?

Trestles and staging refer to the same concept. It is an elevated platform built with trestles and planks. This system is commonly used in industrial and construction settings. It provides a safe, raised working surface for employees.

Where trestle staging is used, what is the maximum height of a working platform?

The maximum safe working height varies. It depends directly on the specifications of the specific trestles and planks used. Trestle platforms typically allow safe work up to approximately 2 meters high. Always confirm the manufacturer’s specifications to ensure safety at higher elevations.

How are trestles and staging used in the home?

Trestles and staging offer versatility for home use:

Creating temporary workspace or storage areas.
Setting up temporary surfaces for events or gatherings.

Safety precautions must be followed: ensure stability, verify level placement, and avoid standing on unstable surfaces. Use the correct size components for the task.

What is a ladder trestle?

A ladder trestle is a specialised type of trestle. It is designed for use in conjunction with a ladder. The system consists of two brackets that attach to the top and bottom of the ladder. Two trestles then stand on either side. This combination creates a stable and secure working platform for the user.

How do I use a ladder trestle safely?

Safe use requires the following procedures:

Ensure all trestles are stable and placed on level ground.
Verify the ladder is secure and in certified condition.
Avoid standing on the top rung of the ladder.
Use the correct size trestles for the required height.
Be cautious when transporting due to the equipment’s weight.

What are the benefits of a ladder trestle?

The main benefit is the creation of a safe and stable working platform. This makes the system ideal for working at height or on uneven ground. Ladder trestles are generally lighter than other trestle systems. This simplifies transport and speeds up setup time.

SAFETY IS OUR FIRST PRIORITY

We provide safety handrail systems built to fit our trestles and planks.

The safety handrail system consists of telescopic handrails, outriggers, clamps, and braces that allow users to assemble the system for industrial and domestic use – including house painting, roof plumbing and tiling, gardening, repairs and maintenance on external buildings, and much more.

You can also purchase plank clamps that allow for two aluminium planks to clamp together – evenly distributing the balance among both planks to prevent any dangerous bowing.

PURCHASING & SHIPPING INFORMATION

Contact our team on 1300 305 200 to get your Quick Quote, faster checkout, and express delivery on any of our Trestles & Planks.

You can visit also at 17-19 Lieber Grove, Carrum Downs VIC 3201 and shop for Trestles & Planks, as well as our full range of aluminium, steel, and stainless steel products on site, or have our team arrange delivery directly to you in any suburb or postcode Australia wide.

Looking for mobile scaffolding products to use alongside our Trestles and Planks?

Click HERE to visit our Mobile Scaffolding page

Get YOUR Quote

contact us

1300 305 200

Want to learn more? Contact the Star Aluminium team today to discover our full set of trestles and planks fabrication. You can reach us directly by phone at 1300 305 200 or make an online enquiry by clicking the QUICK QUOTE button.
